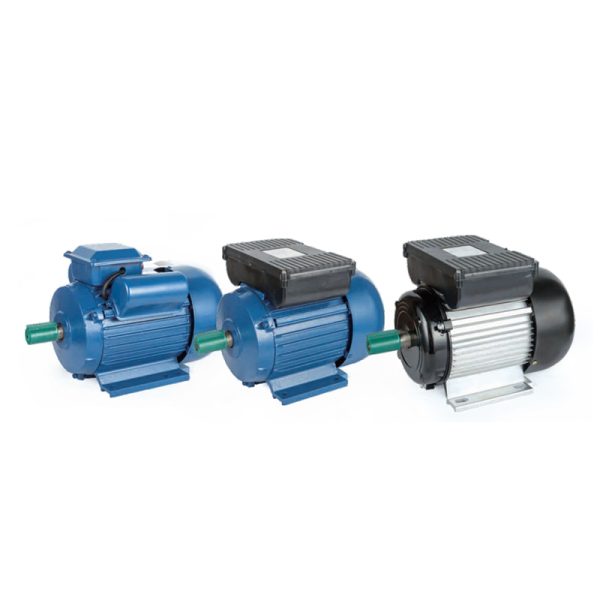

Features Of YL-series Products
YL series motors are single-phase with starting and running capacitors.Main Features: Small size with strong starting torque, which is 1.5 times as rated power.High power factor and efficiency,safety and reliability in running simple construction and easy maintenance.
This series motor is with totally enclosed fan-cooled structure,class B insulation,Ip44 degree of protection and IC0141 method of cooling.
The mounting dimensions of the motors are all in conformity with I EC standards.Mountin types: IM B35. YL series motors is suitable for machines and equipments such as full load start.
Features Of YC-series Products
YC single-phase capactltor-start asynchronous motor series Is totally enclosed fan-cooled type.The starting torque of motors Is 2-3 times as rated torque.The motors have excellent performance such as low In noise,low In termperature-rlse.hlgh In overloading capacity and convenient malntaln.lt Is widely application In all types of small machine tools,compressors,pumps, refrigerators and the equipment which need bigger starting torque etc.They are wonderful utilities for family workshop where only single-phase power are available. This series adopts class B insulation,IP44 degree of protection and IC0141 method of cooling.
Technical Data Of YL/YC Series
| 型号 Model | 功率 Power (kw) | 转速Speed (r/min) | 电流Current (A) | 电压Voltage (v) | 效率EFF (%) | 功率因数P.F. CosΦ | LRT RLT | BDT RLT | LRA RLA | 噪音Noise LodB(A) | 重量Weight（kg） |
| YL711-2 | 0.37 | 2800 | 2.7 | 220 | 67 | 0.92 | 1.8 | 1.7 | 16 | 72 | 10 |
| YL712-2 | 0.55 | 2800 | 3.9 | 220 | 70 | 0.92 | 1.8 | 1.7 | 21 | 72 | 11 |
| YL711-4 | 0.25 | 1400 | 2.0 | 220 | 62 | 0.92 | 1.8 | 1.7 | 12 | 67 | 9 |
| YL712-4 | 0.37 | 1400 | 2.8 | 220 | 65 | 0.92 | 1.8 | 1.7 | 16 | 67 | 10 |
| YL801-2 | 0.75 | 2800 | 5.1 | 220 | 72 | 0.92 | 1.8 | 1.7 | 29 | 75 | 14 |
| YL802-2 | 1.1 | 2800 | 7.0 | 220 | 75 | 0.95 | 1.8 | 1.7 | 40 | 75 | 15 |
| YL801-4 | 0.55 | 1400 | 4.0 | 220 | 68 | 0.95 | 1.8 | 1.7 | 21 | 70 | 13 |
| YL802-4 | 0.75 | 1400 | 5.2 | 220 | 71 | 0.92 | 1.8 | 1.7 | 29 | 70 | 14 |
| YL90S-2 | 1.5 | 2800 | 9.4 | 220 | 76 | 0.95 | 1.7 | 1.7 | 55 | 78 | 22 |
| YL90L-2 | 2.2 | 2800 | 13.7 | 220 | 77 | 0.95 | 1.7 | 1.7 | 80 | 78 | 24 |
| YL90S-4 | 1.1 | 1400 | 7.2 | 220 | 73 | 0.95 | 1.7 | 1.7 | 40 | 73 | 21 |
| YL90L-4 | 1.5 | 1400 | 9.6 | 220 | 75 | 0.95 | 1.7 | 1.7 | 55 | 73 | 23 |
| YL100L-2 | 3 | 2800 | 18.2 | 220 | 79 | 0.95 | 1.7 | 1.7 | 110 | 83 | 24 |
| YL100L1-4 | 2.2 | 1400 | 13.9 | 220 | 76 | 0.95 | 1.7 | 1.7 | 80 | 78 | 32 |
| YL100L2-4 | 3 | 1400 | 18.6 | 220 | 77 | 0.95 | 1.7 | 1.7 | 110 | 78 | 33 |
| YL112M-2 | 3.7 | 2800 | 22.1 | 220 | 80 | 0.95 | 1.7 | 1.7 | 130 | 78 | 46 |
| YL112M-4 | 3.7 | 1400 | 22.4 | 220 | 79 | 0.95 | 1.7 | 1.7 | 130 | 78 | 44 |
| YC711-2 | 0.18 | 2800 | 1.9 | 220 | 60 | 0.72 | 3.0 | 1.8 | 12 | 70 | 9.5 |
| YC712-2 | 0.25 | 2800 | 2.4 | 220 | 64 | 0.74 | 3.0 | 1.8 | 15 | 70 | 10 |
| YC711-4 | 0.12 | 1400 | 1.9 | 220 | 50 | 0.58 | 3.0 | 1.8 | 9 | 65 | 9.5 |
| YC712-4 | 0.18 | 1400 | 2.5 | 220 | 53 | 0.62 | 2.8 | 1.8 | 12 | 65 | 10 |
| YC801-2 | 0.37 | 2800 | 3.4 | 220 | 65 | 0.77 | 2.8 | 1.8 | 21 | 75 | 13.5 |
| YC802-2 | 0.55 | 2800 | 4.7 | 220 | 68 | 0.79 | 2.8 | 1.8 | 29 | 75 | 14.5 |
| YC801-4 | 0.25 | 1400 | 3.1 | 220 | 58 | 0.63 | 2.8 | i.a | 15 | 65 | 13.5 |
| YC802-4 | 0.37 | 1400 | 4.2 | 220 | 62 | 0.64 | 2.5 | 1.8 | 21 | 70 | 14.5 |
| YC90S-2 | 0.75 | 2800 | 5.9 | 220 | 70 | 0.80 | 2.5 | 1.8 | 37 | 75 | 22 |
| YC90L-2 | 1.1 | 2800 | 8.7 | 220 | 72 | 0.80 | 2.5 | 1.8 | 60 | 78 | 21 |
| YC90S-4 | 0.55 | 1400 | 5.5 | 220 | 66 | 0.69 | 2.5 | 1.8 | 29 | 70 | 22 |
| YC90L-4 | 0.75 | 1400 | 6.9 | 220 | 68 | 0.73 | 2.5 | 1.8 | 37 | 70 | 21 |
| YC100L1-2 | 1.5 | 2800 | 11.4 | 220 | 74 | 0.81 | 2.5 | 1.8 | 80 | 83 | 31 |
| YC100L2-2 | 2.2 | 2800 | 16.5 | 220 | 75 | 0.81 | 2.2 | 1.8 | 120 | 83 | 33 |
| YC100L1-4 | 1.1 | 1400 | 9.5 | 220 | 71 | 0.74 | 2.5 | 1.8 | 60 | 73 | 31 |
| YC100L2-4 | 1.5 | 1400 | 12.5 | 220 | 73 | 0.75 | 2.5 | 1.8 | 80 | 78 | 32 |
| YC112M-2 | 3 | 2800 | 21.9 | 220 | 76 | 0.82 | 2.2 | 1.8 | 150 | 87 | 46 |
| YC112M-4 | 2.2 | 1400 | 17.8 | 220 | 74 | 0.76 | 2.2 | 1.8 | 120 | 78 | 40 |
